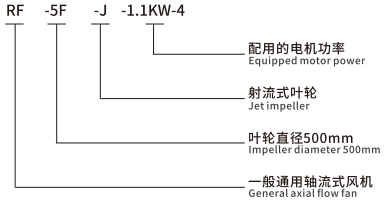

1、 RF-J diagonal flow fan model description

RF-J斜流风机型号说明RF-J斜流风机

2、 RF-J diagonal flow fan product features

● Airflow range: 398~22910m3/h

Optimize the steel jet impeller for high efficiency, high pressure, and no overload

Motor protection frame, active cooling design, extends motor life

● Full pressure range: 91~1148Pa

● Balance level up to G2.5 (AMCA 204)

● Direct drive, efficient, maintenance free

Installation form: seat mounted, lifting

Static resin epoxy spray coating shell, anti-corrosion and rust proof



3、 Application of RF-J diagonal flow fan product

Suitable for ventilation and air exchange in office buildings, hotels, guesthouses, auditoriums, theaters, basements, high-end residential buildings, factories, workshops, shopping malls, hospitals, and other places.

It can be used continuously when the temperature of the transported gas exceeds 80 ℃.

Requirements for conveying medium: The medium should be air, non corrosive, non flammable and non explosive. The gas should not contain viscous substances, and the content of dust or hard particles in the gas should not exceed 150mg/m ³.



4、 RF-J Diagonal Flow Fan Technical Description

The performance parameters provided in this document are data under standard conditions (i.e., the medium is clean air at standard atmospheric pressure, temperature is equal to 20 ℃, and gas density is equal to 1.2kg/m ³), and its testing method complies with the requirements of the AMCA210 standard for the installation method shown in Figure B (1) (free inlet, pipeline outlet).

The noise is measured at the A-meter sound pressure level, and its data is obtained from a distance of 1 meter from the B (1) type fan when both the inlet and outlet are connected to pipelines

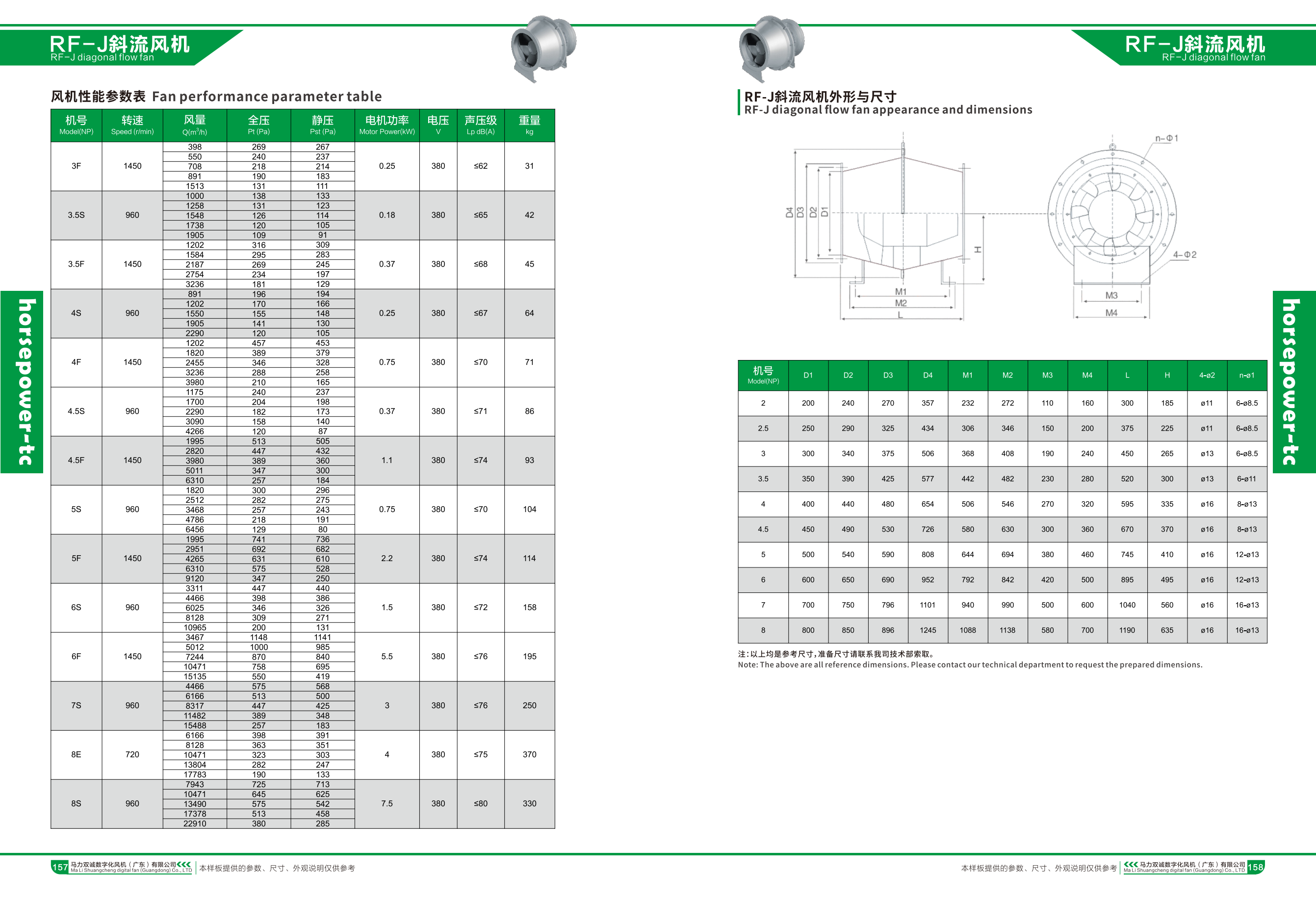

RF-J斜流风机规格参数

1、 RF-J diagonal flow fan model description

RF-J斜流风机型号说明RF-J斜流风机

2、 RF-J diagonal flow fan product features

● Airflow range: 398~22910m3/h

Optimize the steel jet impeller for high efficiency, high pressure, and no overload

Motor protection frame, active cooling design, extends motor life

● Full pressure range: 91~1148Pa

● Balance level up to G2.5 (AMCA 204)

● Direct drive, efficient, maintenance free

Installation form: seat mounted, lifting

Static resin epoxy spray coating shell, anti-corrosion and rust proof



3、 Application of RF-J diagonal flow fan product

Suitable for ventilation and air exchange in office buildings, hotels, guesthouses, auditoriums, theaters, basements, high-end residential buildings, factories, workshops, shopping malls, hospitals, and other places.

It can be used continuously when the temperature of the transported gas exceeds 80 ℃.

Requirements for conveying medium: The medium should be air, non corrosive, non flammable and non explosive. The gas should not contain viscous substances, and the content of dust or hard particles in the gas should not exceed 150mg/m ³.



4、 RF-J Diagonal Flow Fan Technical Description

The performance parameters provided in this document are data under standard conditions (i.e., the medium is clean air at standard atmospheric pressure, temperature is equal to 20 ℃, and gas density is equal to 1.2kg/m ³), and its testing method complies with the requirements of the AMCA210 standard for the installation method shown in Figure B (1) (free inlet, pipeline outlet).

The noise is measured at the A-meter sound pressure level, and its data is obtained from a distance of 1 meter from the B (1) type fan when both the inlet and outlet are connected to pipelines

RF-J斜流风机规格参数
