● Airflow range: 500~1000000m ³/h
Optimize the steel axial flow impeller for high efficiency and no overload
● Active cooling design, extending motor life
● Full pressure range: 50~1290Pa
● Balance level up to G2.5 (AMCA 204)
● Drive form: direct drive
● Direct drive, efficient, maintenance free
Installation form: seat mounted, lifting
Static resin epoxy spray coating shell, anti-corrosion and rust proof
Suitable for ventilation and air exchange in office buildings, hotels, guesthouses, auditoriums, theaters, basements, high-end residential buildings, factories, workshops, shopping malls, hospitals, and other places.
It can be used continuously when the temperature of the transported gas exceeds 80 ℃.
Requirements for conveying medium: The medium should be air, non corrosive, non flammable and non explosive. The gas should not contain viscous substances, and the content of dust or hard particles in the gas should not exceed 150mg/m ³.

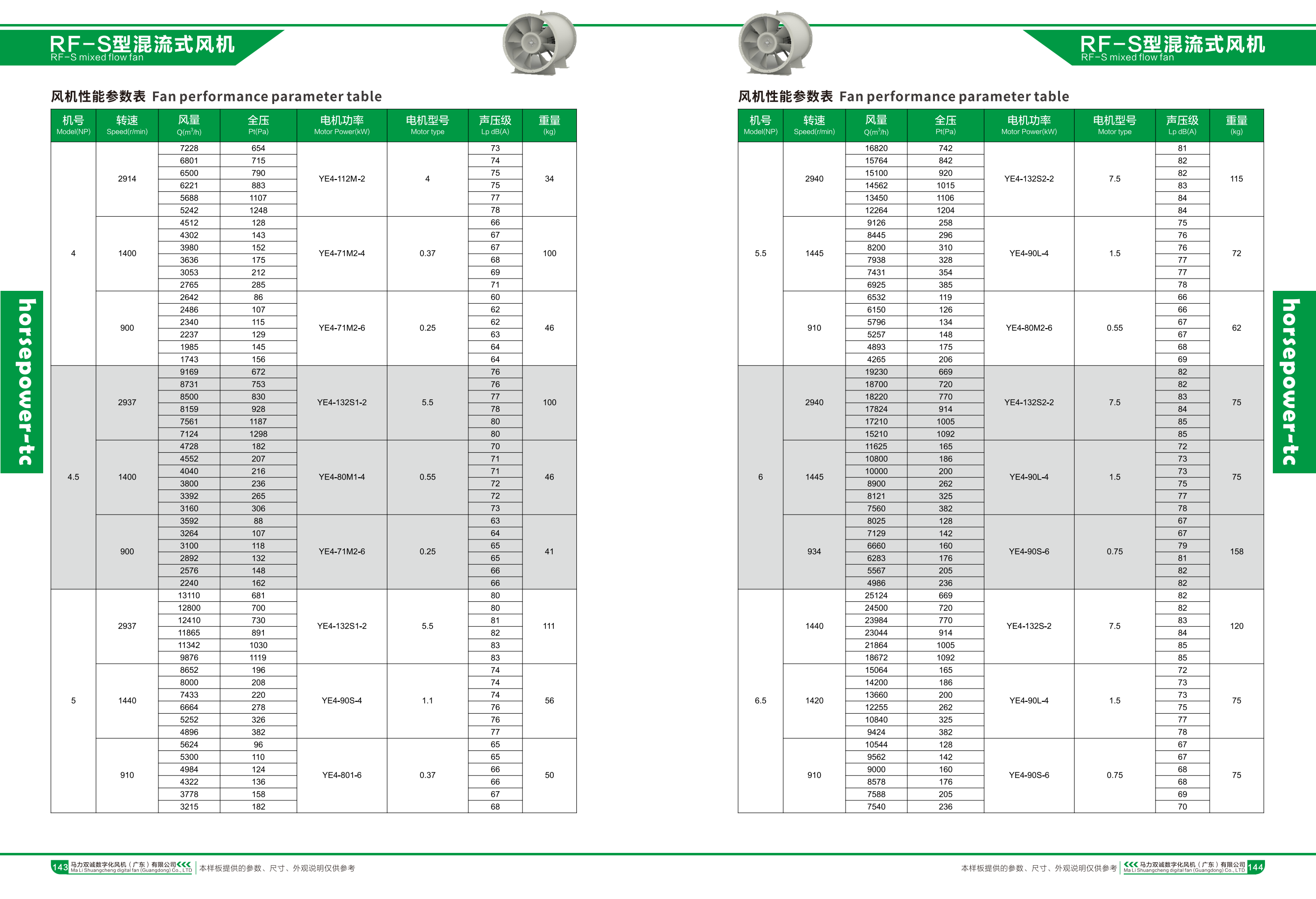

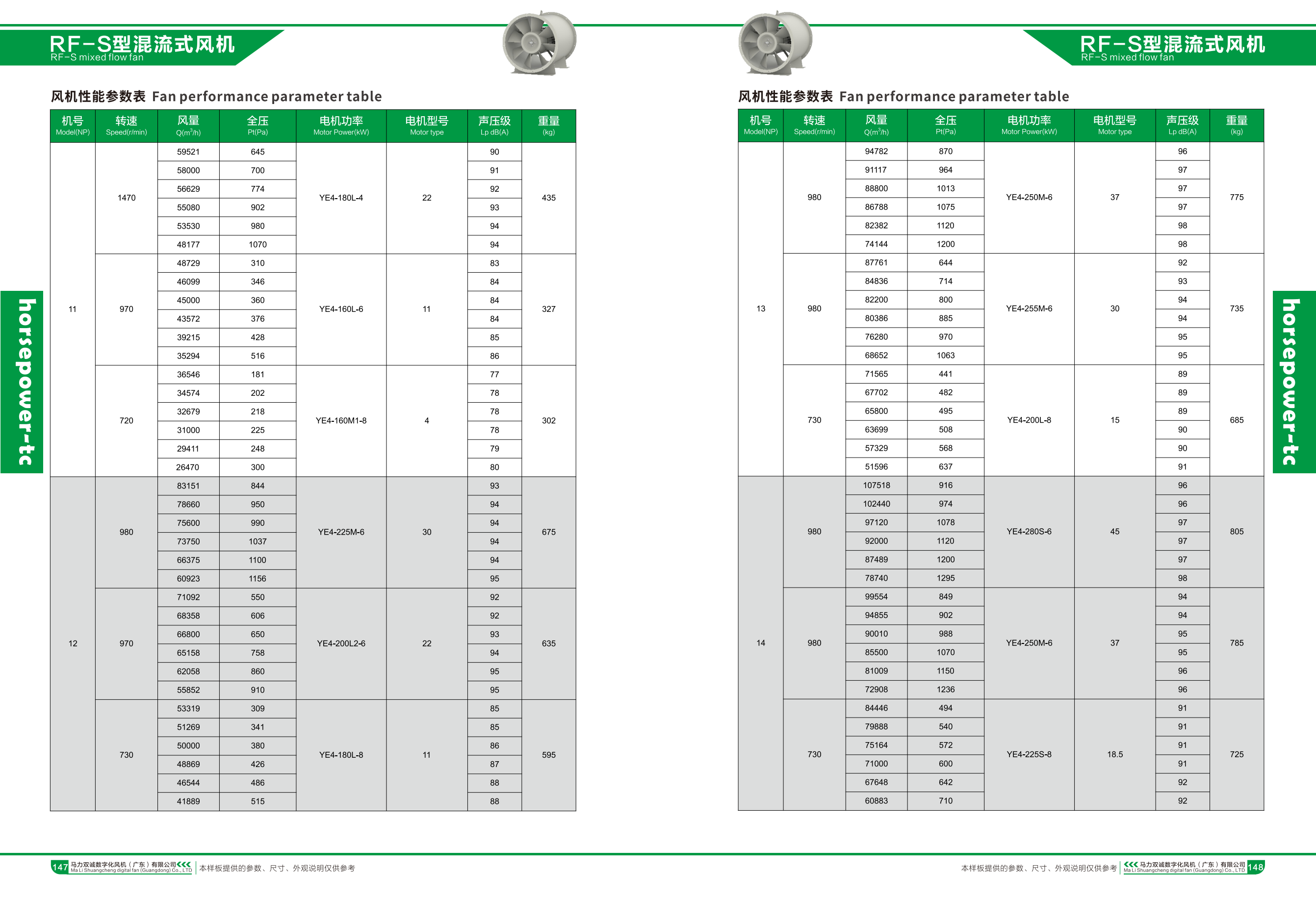

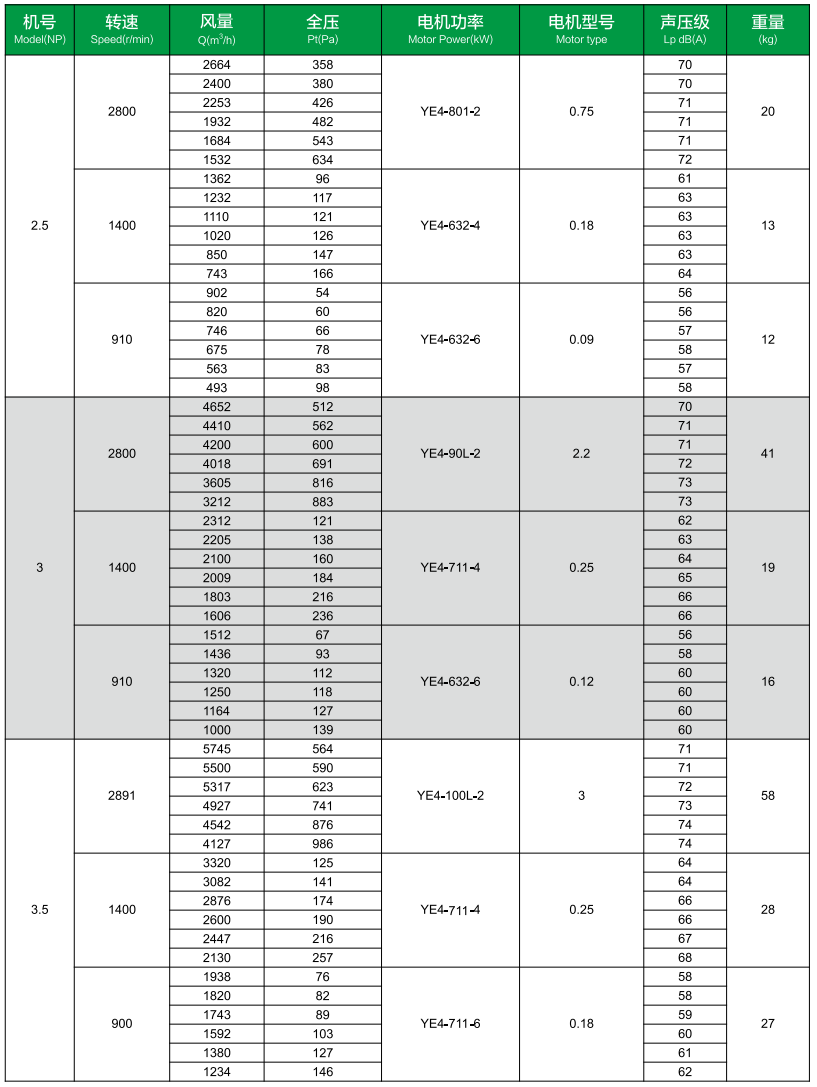

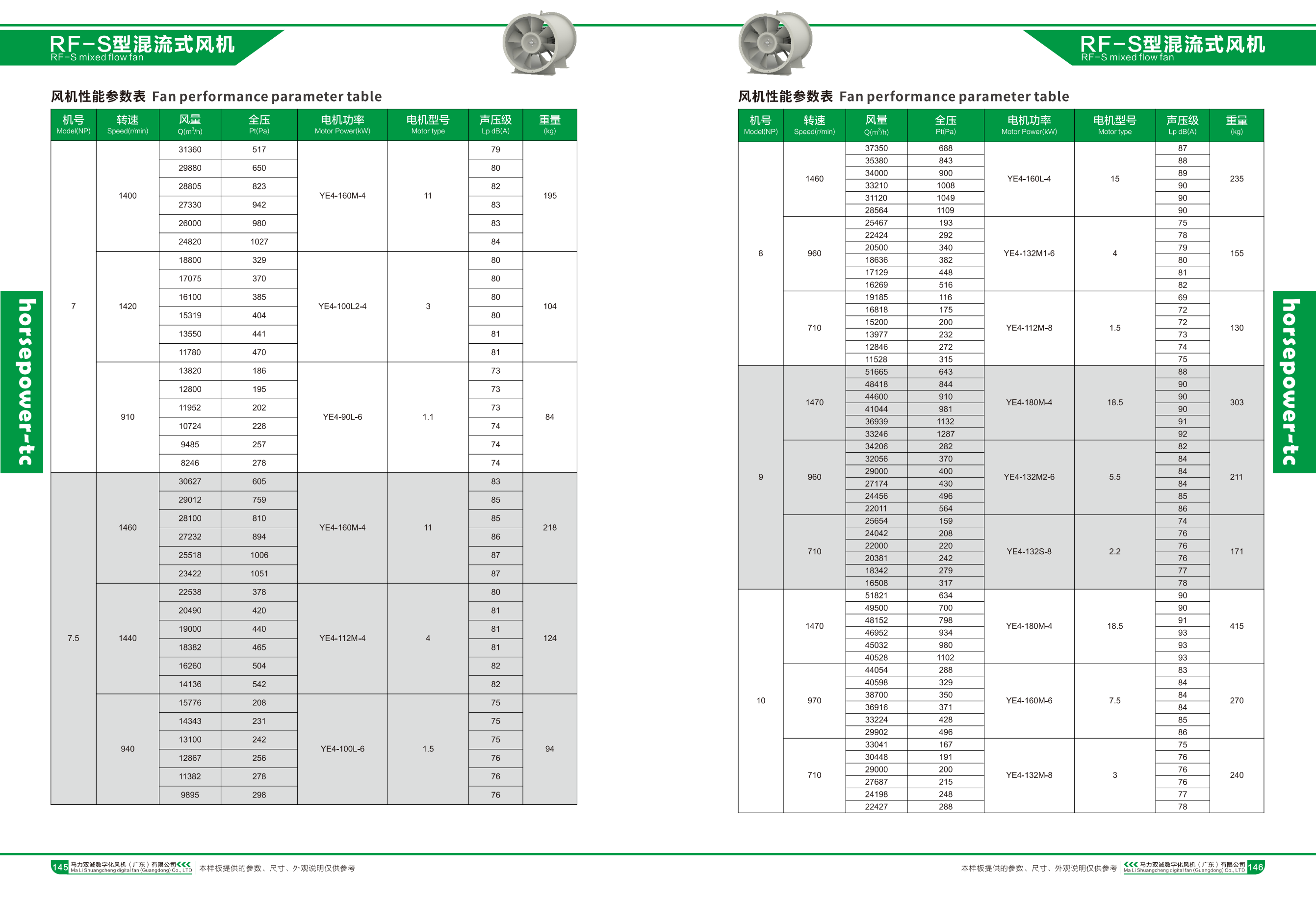

The performance parameters provided in this document are data under standard conditions (i.e., the medium is clean air at standard atmospheric pressure, temperature is equal to 20 ℃, and gas density is equal to 1.2kg/m ³), and its testing method complies with the requirements of the AMCA210 standard for the installation method shown in Figure B (1) (free inlet, pipeline outlet).
The noise is measured as the A-meter sound pressure level, and its data is obtained from a distance of 1 meter from the B (1) type fan when both the inlet and outlet are connected to pipelines. It should be noted that the sound pressure level will change with the characteristics of the testing environment, reflection, and natural frequency. All interpretation rights regarding noise issues belong to our company.
| |
● Airflow range: 500~1000000m ³/h
Optimize the steel axial flow impeller for high efficiency and no overload
● Active cooling design, extending motor life
● Full pressure range: 50~1290Pa
● Balance level up to G2.5 (AMCA 204)
● Drive form: direct drive
● Direct drive, efficient, maintenance free
Installation form: seat mounted, lifting
Static resin epoxy spray coating shell, anti-corrosion and rust proof
Suitable for ventilation and air exchange in office buildings, hotels, guesthouses, auditoriums, theaters, basements, high-end residential buildings, factories, workshops, shopping malls, hospitals, and other places.
It can be used continuously when the temperature of the transported gas exceeds 80 ℃.
Requirements for conveying medium: The medium should be air, non corrosive, non flammable and non explosive. The gas should not contain viscous substances, and the content of dust or hard particles in the gas should not exceed 150mg/m ³.
The performance parameters provided in this document are data under standard conditions (i.e., the medium is clean air at standard atmospheric pressure, temperature is equal to 20 ℃, and gas density is equal to 1.2kg/m ³), and its testing method complies with the requirements of the AMCA210 standard for the installation method shown in Figure B (1) (free inlet, pipeline outlet).
The noise is measured as the A-meter sound pressure level, and its data is obtained from a distance of 1 meter from the B (1) type fan when both the inlet and outlet are connected to pipelines. It should be noted that the sound pressure level will change with the characteristics of the testing environment, reflection, and natural frequency. All interpretation rights regarding noise issues belong to our company.
Product category: Mixed flow fan
