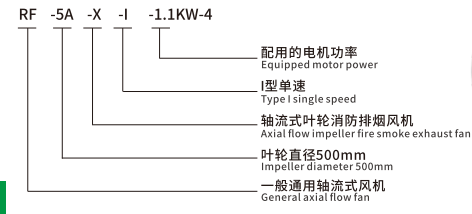

1、 Model Description of RF-X-I Axial Flow Fire Exhaust Fan

RF-X-I型轴流式消防排烟风机型号说明RF-X-I型轴流式消防排烟风机

2、 Product Features of RF-X-I Axial Flow Fire Exhaust Fan

● Airflow range: 2000~140000m ³/h

Optimize the steel axial flow impeller for high efficiency and no overload

● Full pressure range: 80~1100Pa

● Independent motor chamber, active cooling design, extends motor life

● Drive form: direct drive

● Balance level up to G2.5 (AMCA 204)

● Direct drive, efficient, maintenance free

Installation form: seat mounted, lifting

Static resin epoxy spray coating shell, anti-corrosion and rust proof

3、 Application of RF-X-I Axial Flow Fire Exhaust Fan Product

Suitable for ventilation, air exchange, and fire smoke exhaust in office buildings, hotels, auditoriums, theaters, basements, high-end residential buildings, factory workshops, shopping malls, hospitals, and other places.

When the temperature of the transported gas exceeds 80 ℃, it can be used continuously. When used for fire smoke exhaust, it can operate continuously for no less than 60 minutes at a high temperature of 280C to achieve the purpose of fire smoke exhaust.

Requirements for conveying medium: The medium should be air, non corrosive, non flammable and non explosive. The gas should not contain viscous substances, and the content of dust or hard particles in the gas should not exceed 150mg/m ³.



4、 Technical Description of RF-X-I Axial Flow Fire Exhaust Fan

The performance parameters provided in this document are data under standard conditions (i.e., the medium is clean air at standard atmospheric pressure, temperature is equal to 20 ° C, and gas density is equal to 1.2kg/m ³), and its testing method complies with the requirements of the AMCA210 standard for the installation method shown in Figure B (1) (free inlet, pipe outlet).

The noise is measured as the A-meter sound pressure level, and its data is obtained from a distance of 1 meter from the B (1) type fan when both the inlet and outlet are connected to pipelines. It should be noted that the sound pressure level will change with the characteristics of the testing environment, reflection, and natural frequency. All interpretation rights regarding noise issues belong to our company.

1、 Model Description of RF-X-I Axial Flow Fire Exhaust Fan

RF-X-I型轴流式消防排烟风机型号说明RF-X-I型轴流式消防排烟风机

2、 Product Features of RF-X-I Axial Flow Fire Exhaust Fan

● Airflow range: 2000~140000m ³/h

Optimize the steel axial flow impeller for high efficiency and no overload

● Full pressure range: 80~1100Pa

● Independent motor chamber, active cooling design, extends motor life

● Drive form: direct drive

● Balance level up to G2.5 (AMCA 204)

● Direct drive, efficient, maintenance free

Installation form: seat mounted, lifting

Static resin epoxy spray coating shell, anti-corrosion and rust proof

3、 Application of RF-X-I Axial Flow Fire Exhaust Fan Product

Suitable for ventilation, air exchange, and fire smoke exhaust in office buildings, hotels, auditoriums, theaters, basements, high-end residential buildings, factory workshops, shopping malls, hospitals, and other places.

When the temperature of the transported gas exceeds 80 ℃, it can be used continuously. When used for fire smoke exhaust, it can operate continuously for no less than 60 minutes at a high temperature of 280C to achieve the purpose of fire smoke exhaust.

Requirements for conveying medium: The medium should be air, non corrosive, non flammable and non explosive. The gas should not contain viscous substances, and the content of dust or hard particles in the gas should not exceed 150mg/m ³.



4、 Technical Description of RF-X-I Axial Flow Fire Exhaust Fan

The performance parameters provided in this document are data under standard conditions (i.e., the medium is clean air at standard atmospheric pressure, temperature is equal to 20 ° C, and gas density is equal to 1.2kg/m ³), and its testing method complies with the requirements of the AMCA210 standard for the installation method shown in Figure B (1) (free inlet, pipe outlet).

The noise is measured as the A-meter sound pressure level, and its data is obtained from a distance of 1 meter from the B (1) type fan when both the inlet and outlet are connected to pipelines. It should be noted that the sound pressure level will change with the characteristics of the testing environment, reflection, and natural frequency. All interpretation rights regarding noise issues belong to our company.
