Induction fan is a part of the ductless jet induced ventilation system, which consists of the supply fan and exhaust fan to form the entire system. The principle is to use high-speed airflow from multiple induced draft fan nozzles designed and appropriately arranged by the system, as well as fresh or treated air outside the induction room, to deliver it to the required area without air ducts; Realize optimal indoor airflow organization to achieve efficient and economical ventilation and air exchange effects. When using a ductless jet induced ventilation system, the cost of designing, manufacturing, installing air ducts and other supporting engineering can be saved, which is much more expensive than using an induced draft fan unit. Moreover, the entire floor is used as the ventilation duct, and the required air pressure for the supply and exhaust fans is much lower than when using pipelines. This allows for the selection of fans with higher wind volume and lower air pressure, reducing the required power and significantly lowering the investment cost of operation. When the exhaust fan stops running, the induction fan can still operate, playing a role in local ventilation and air exchange.
The induction fan is equipped with a high-efficiency centrifugal fan, which has low noise, small size, light weight, easy lifting (both vertical and horizontal installation are acceptable), simple maintenance, and is widely used for ventilation in large areas such as underground parking lots, sports halls, workshops, warehouses, shopping malls, supermarkets, and entertainment venues.

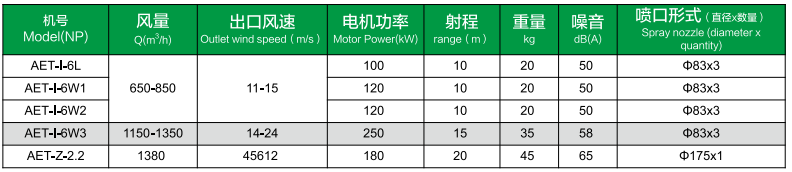

AET-I type induced draft fan is generally used in windless induced draft fan systems, with two structural forms of vertical and horizontal dual-use. The motor adopts a single-phase motor dedicated to the fan.
The jet induction system can be designed with an intelligent system that sets up air quality sensors in the induction space to detect carbon monoxide concentration. The controller automatically controls the start and stop of the induction fan (with intelligent induction fan configuration) to achieve automated control.
1. The system planning and design are simple, with great flexibility in design changes, easy modification, flexible layout, and the spray direction can be adjusted anytime and anywhere;
2. Easy installation, simple construction, can be installed in targeted locations, eliminating blind spots;
3. Easy and convenient maintenance, single machine maintenance, does not affect the operation of the entire system;
4. The quality of the converter is high, and the induction system ensures complete air circulation throughout the entire space, leaving no dead corners and improving air quality;
5. The fan is made of high-quality cold-rolled flat plates. The exterior is sprayed with plastic, the whole machine is beautiful and elegant, and it has good coordination with spatial decoration.
6. The motor adopts a maintenance free fan specific motor, with a built-in high-efficiency centrifugal fan and low noise. The impeller has undergone high-precision dynamic balance verification, resulting in low vibration
Induction fan is a part of the ductless jet induced ventilation system, which consists of the supply fan and exhaust fan to form the entire system. The principle is to use high-speed airflow from multiple induced draft fan nozzles designed and appropriately arranged by the system, as well as fresh or treated air outside the induction room, to deliver it to the required area without air ducts; Realize optimal indoor airflow organization to achieve efficient and economical ventilation and air exchange effects. When using a ductless jet induced ventilation system, the cost of designing, manufacturing, installing air ducts and other supporting engineering can be saved, which is much more expensive than using an induced draft fan unit. Moreover, the entire floor is used as the ventilation duct, and the required air pressure for the supply and exhaust fans is much lower than when using pipelines. This allows for the selection of fans with higher wind volume and lower air pressure, reducing the required power and significantly lowering the investment cost of operation. When the exhaust fan stops running, the induction fan can still operate, playing a role in local ventilation and air exchange.
The induction fan is equipped with a high-efficiency centrifugal fan, which has low noise, small size, light weight, easy lifting (both vertical and horizontal installation are acceptable), simple maintenance, and is widely used for ventilation in large areas such as underground parking lots, sports halls, workshops, warehouses, shopping malls, supermarkets, and entertainment venues.
AET-I type induced draft fan is generally used in windless induced draft fan systems, with two structural forms of vertical and horizontal dual-use. The motor adopts a single-phase motor dedicated to the fan.
The jet induction system can be designed with an intelligent system that sets up air quality sensors in the induction space to detect carbon monoxide concentration. The controller automatically controls the start and stop of the induction fan (with intelligent induction fan configuration) to achieve automated control.
1. The system planning and design are simple, with great flexibility in design changes, easy modification, flexible layout, and the spray direction can be adjusted anytime and anywhere;
2. Easy installation, simple construction, can be installed in targeted locations, eliminating blind spots;
3. Easy and convenient maintenance, single machine maintenance, does not affect the operation of the entire system;
4. The quality of the converter is high, and the induction system ensures complete air circulation throughout the entire space, leaving no dead corners and improving air quality;
5. The fan is made of high-quality cold-rolled flat plates. The exterior is sprayed with plastic, the whole machine is beautiful and elegant, and it has good coordination with spatial decoration.
6. The motor adopts a maintenance free fan specific motor, with a built-in high-efficiency centrifugal fan and low noise. The impeller has undergone high-precision dynamic balance verification, resulting in low vibration
Product category: Induction fan
