Product Overview

The resistance short arm silencing elbow is the same as the resistance silencing elbow, except that the radius of the inner arc of the elbow is different. The inner arc of the short arm elbow is 200mm. When the height of the pipeline section a is ≥ 500mm, appropriate air guide silencing plates should be added inside the elbow. Beneficial for improving noise reduction effect, reducing resistance loss, and minimizing regenerative noise.

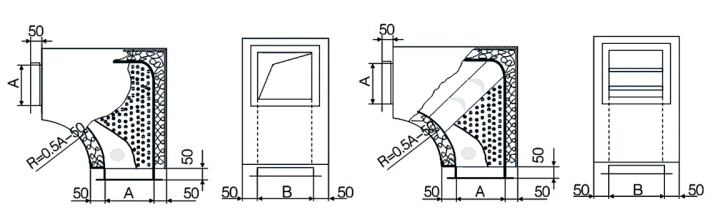

Structural schematic diagram

DXSW 短臂消声弯头结构示意图

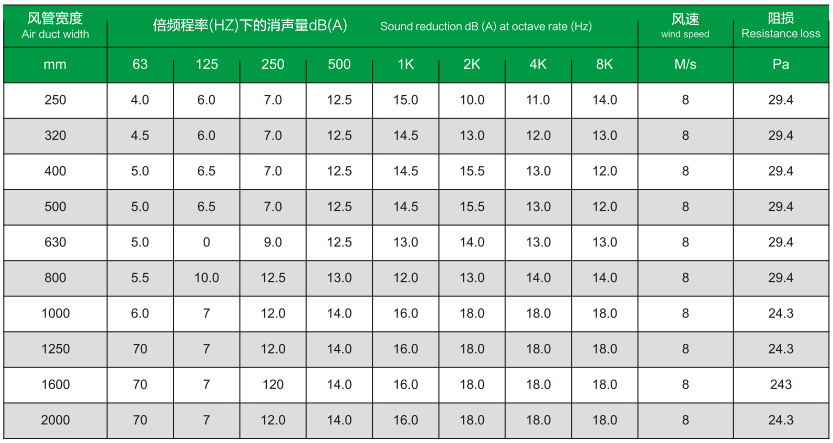

DXSW 短臂消声弯头规格参数

Product Overview

The resistance short arm silencing elbow is the same as the resistance silencing elbow, except that the radius of the inner arc of the elbow is different. The inner arc of the short arm elbow is 200mm. When the height of the pipeline section a is ≥ 500mm, appropriate air guide silencing plates should be added inside the elbow. Beneficial for improving noise reduction effect, reducing resistance loss, and minimizing regenerative noise.

Structural schematic diagram

DXSW 短臂消声弯头结构示意图


DXSW 短臂消声弯头规格参数
