Product Overview

A tubular muffler, also known as a resistive muffler, is a material that is fixed in an airflow channel. When sound waves propagate through porous sound-absorbing materials, they are converted into heat energy due to frictional and viscous resistance, achieving the purpose of noise reduction. This series of mufflers is designed based on the international T701-2 model.

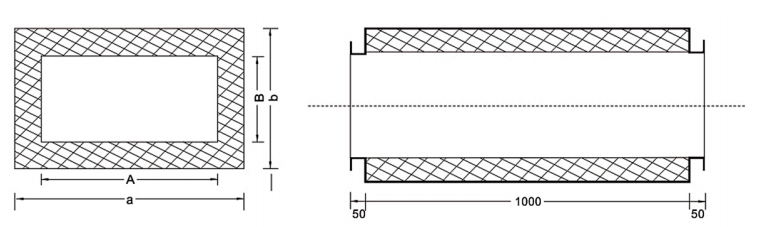

Structural schematic diagram

ZKGX 阻抗管式消声器结构示意图

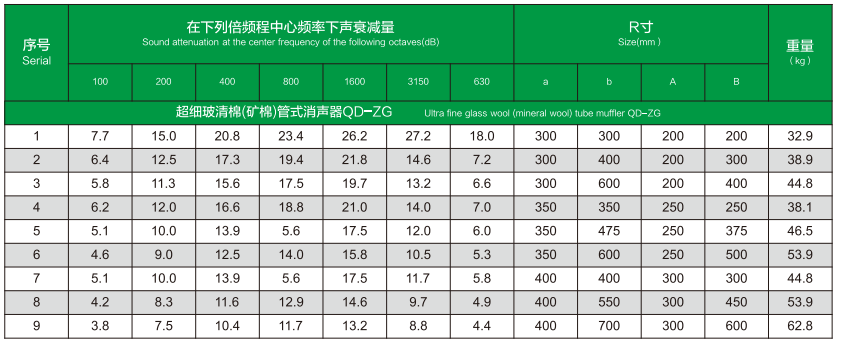

ZKGX 阻抗管式消声器规格参数


Product Overview

A tubular muffler, also known as a resistive muffler, is a material that is fixed in an airflow channel. When sound waves propagate through porous sound-absorbing materials, they are converted into heat energy due to frictional and viscous resistance, achieving the purpose of noise reduction. This series of mufflers is designed based on the international T701-2 model.

Structural schematic diagram

ZKGX 阻抗管式消声器结构示意图


ZKGX 阻抗管式消声器规格参数


Product Category: Muffler, Static Pressure Box Series
