KTJ simple cabinet centrifugal fan
GDF low-noise rectangular centrifugal fan
EF-BF transparent cabinet centrifugal fan
EF-X-I multi wing cabinet centrifugal fan
 |
ATop mounted motor |
ASide mounted motor |
BBuilt in motor |
● Airflow range: 1100~150000m ³/h
Static pressure range: 190~2548Pa
● Drive form: Belt drive
Installation form: seat mounted, lifting
Double inlet centrifugal impeller, high efficiency, low noise
The snail shell adopts the "Pittsburgh" splicing process
● Balance level up to G2.5 (AMCA204)
Sealed box structure, further reducing noise

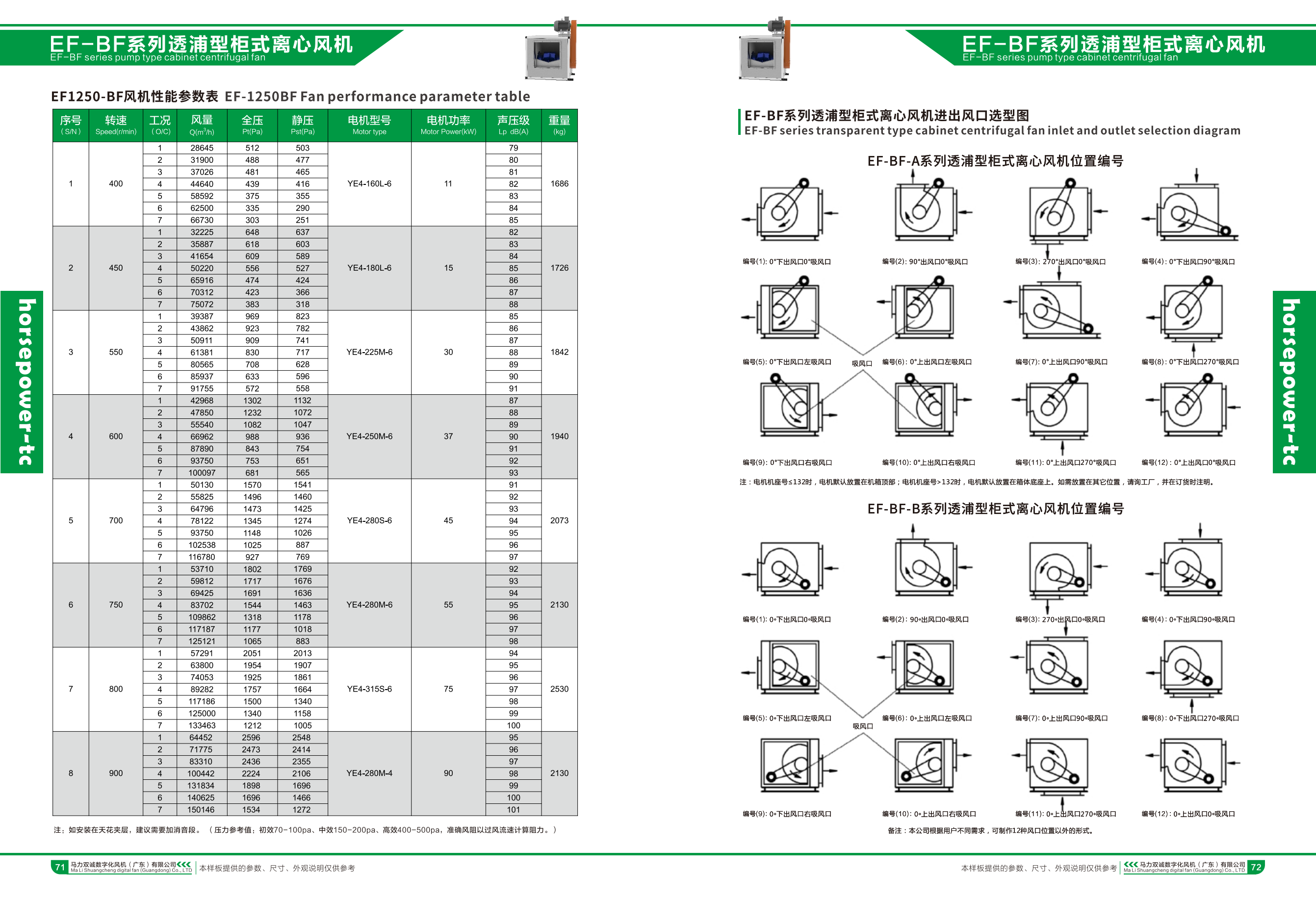

● Multiple air outlet directions to choose from, suitable for various working conditions
Belt drive, precise selection, adjustable on site
Sheet metal structure, light weight, good appearance
EF-BF transparent cabinet centrifugal fan is suitable for ventilation and fire smoke exhaust in office buildings, hotels, auditoriums, theaters, basements, high-end residential buildings, factories, workshops, shopping malls, hospitals and other places.
When the temperature of the transported gas exceeds 80 ℃, it can be used continuously. When used for fire smoke exhaust, it can operate continuously for no less than 60 minutes at a high temperature of 280C to achieve the purpose of fire smoke exhaust.
Requirements for conveying medium: The medium should be air, non corrosive, non flammable and non explosive. The gas should not contain viscous substances, and the content of dust or hard particles in the gas should not exceed 150mg/m ³.
The performance parameters provided in this document are data under standard conditions (i.e., the medium is clean air at standard atmospheric pressure, temperature is equal to 20 ℃, and gas density is equal to 1.2kg/m ³), and its testing method complies with the requirements of the AMCA210 standard for the installation method shown in Figure B (1) (free inlet, pipeline outlet).
The noise is measured as the A-meter sound pressure level, and its data is obtained from a distance of 1 meter from the B (1) type fan when both the inlet and outlet are connected to pipelines. It should be noted that the sound pressure level will change with the characteristics of the testing environment, reflection, and natural frequency. All interpretation rights regarding noise issues belong to our company.
|
ATop mounted motor |
ASide mounted motor |
BBuilt in motor |
● Airflow range: 1100~150000m ³/h
Static pressure range: 190~2548Pa
● Drive form: Belt drive
Installation form: seat mounted, lifting
Double inlet centrifugal impeller, high efficiency, low noise
The snail shell adopts the "Pittsburgh" splicing process
● Balance level up to G2.5 (AMCA204)
Sealed box structure, further reducing noise
● Multiple air outlet directions to choose from, suitable for various working conditions
Belt drive, precise selection, adjustable on site
Sheet metal structure, light weight, good appearance
EF-BF transparent cabinet centrifugal fan is suitable for ventilation and fire smoke exhaust in office buildings, hotels, auditoriums, theaters, basements, high-end residential buildings, factories, workshops, shopping malls, hospitals and other places.
When the temperature of the transported gas exceeds 80 ℃, it can be used continuously. When used for fire smoke exhaust, it can operate continuously for no less than 60 minutes at a high temperature of 280C to achieve the purpose of fire smoke exhaust.
Requirements for conveying medium: The medium should be air, non corrosive, non flammable and non explosive. The gas should not contain viscous substances, and the content of dust or hard particles in the gas should not exceed 150mg/m ³.
The performance parameters provided in this document are data under standard conditions (i.e., the medium is clean air at standard atmospheric pressure, temperature is equal to 20 ℃, and gas density is equal to 1.2kg/m ³), and its testing method complies with the requirements of the AMCA210 standard for the installation method shown in Figure B (1) (free inlet, pipeline outlet).
The noise is measured as the A-meter sound pressure level, and its data is obtained from a distance of 1 meter from the B (1) type fan when both the inlet and outlet are connected to pipelines. It should be noted that the sound pressure level will change with the characteristics of the testing environment, reflection, and natural frequency. All interpretation rights regarding noise issues belong to our company.
Product category: Cabinet fan
